The Challenge

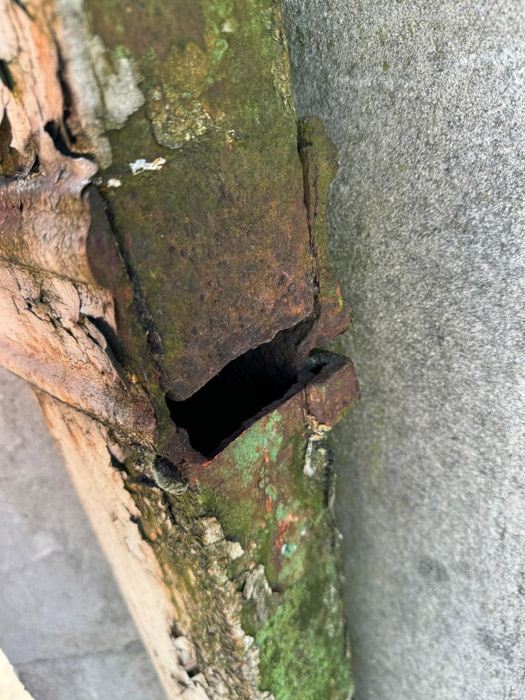

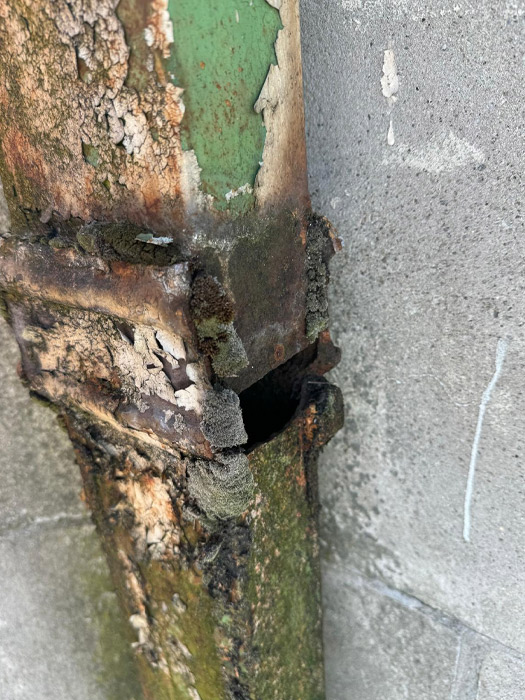

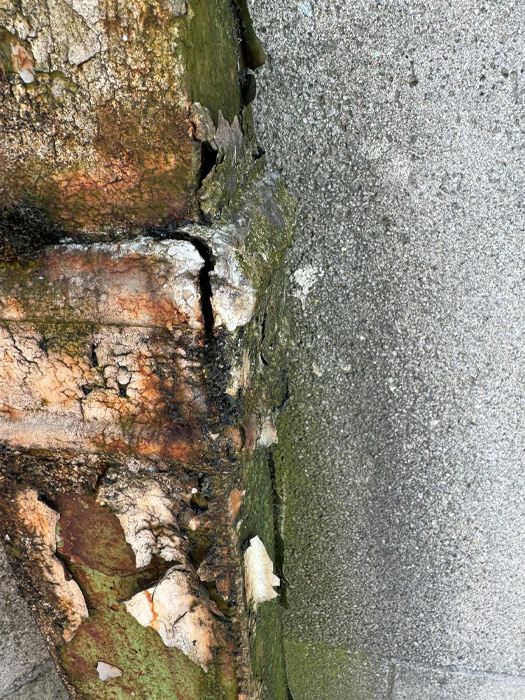

Our client required the removal and replacement of a 40m cast iron downpipe at a property in Paddington. The existing downpipe had developed large cracks, and several of the supporting brackets were rusted through or seriously damaged.
Due to the height of the pipe and the fragile condition of both the pipe and its fixings, sections needed to be removed and lowered to ground level individually. The works also required close coordination with Paddington Train Station to establish robust exclusion zones and ensure the safety of the public during the project.
Our Solution

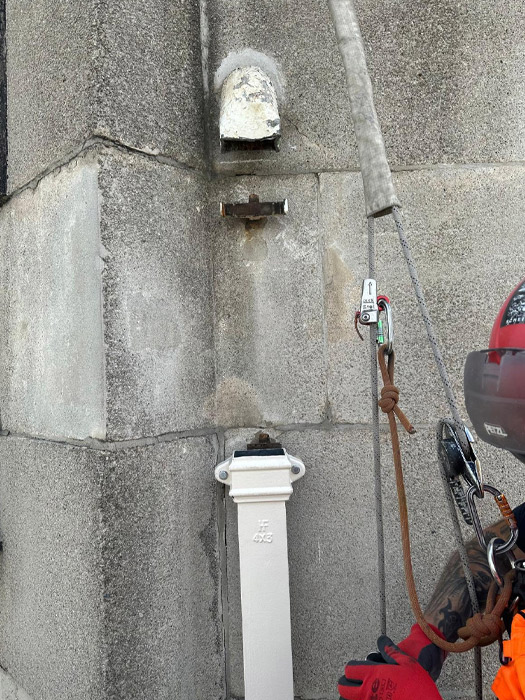

Steel Peaks deployed a team of IRATA-qualified rope access technicians to carry out the works. This project demonstrates our capability in delivering complex drainage system repairs and replacement works where the height, weight, and fragility of materials demand specialist access techniques and controlled handling systems.
Following detailed assessment of the downpipe condition and supporting bracket fixings in the building fabric, a controlled hauling system was rigged to safely lower each section of the old pipe to the ground and to lift and hold the new sections in place as they were installed. This systematic approach ensured complete control of heavy cast iron sections at all times, preventing uncontrolled movement that could endanger personnel or the public below.
Each damaged bracket and section of pipe was carefully removed and replaced, ensuring the structural integrity and long-term performance of the downpipe. Rope access allowed the team to work efficiently at height while maintaining full control of materials and personnel throughout the 40-metre vertical extent of the installation.
All operations were carried out under a site-specific rescue plan and in full compliance with safety procedures. The works were completed with no disruption to the surrounding area or the station's operations, leaving the property with a fully restored and secure downpipe system.
Project Outcome
- Complete replacement of 40m cast iron downpipe system
- Safe removal and disposal of cracked and deteriorated pipe sections

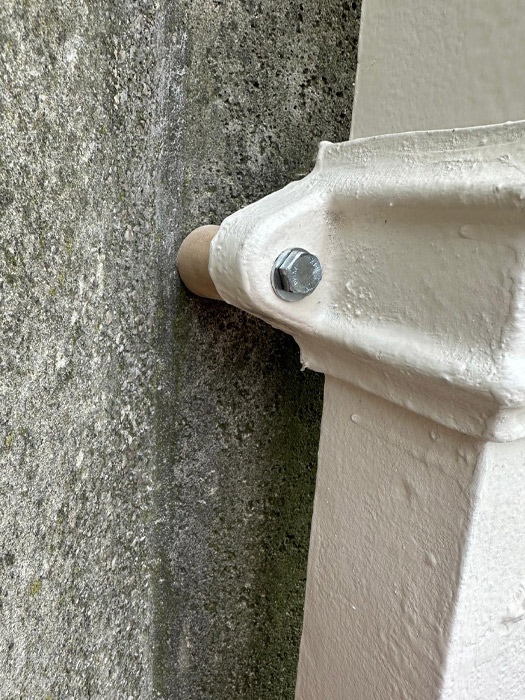

- New bracket installations ensuring secure long-term fixings
- Controlled hauling system managing heavy materials at height safely
- Public safety maintained through exclusion zone coordination
- Zero disruption to Paddington Station operations
- Fully functional drainage system restored to building
Cast Iron Downpipe Replacement Challenges
Cast iron downpipes present unique challenges for repair and replacement works. The material is heavy (a 40m run can weigh several hundred kilograms), brittle when deteriorated, and often fixed to historic building fabric that cannot support scaffolding loads. Traditional access methods would typically require extensive scaffolding installation, road closures for material handling, and potentially weeks of programme time for a relatively straightforward pipe replacement.
As an experienced rope access contractor specialising in building fabric repairs, Steel Peaks has developed systematic approaches to cast iron drainage work. Our controlled hauling systems allow safe management of heavy pipe sections, our rope access techniques enable bracket replacement without building fabric loading, and our rapid mobilisation means projects can be completed in days rather than weeks. This approach is particularly valuable in high-density urban locations like Paddington where road closures, scaffolding licenses, and public safety considerations make traditional access methods increasingly complex and costly.
Controlled Material Handling Systems
Safe removal and installation of heavy vertical elements requires specialist rigging and material handling techniques:
- Load Assessment: Calculation of pipe section weights and system loading requirements
- Anchor Point Selection: Identification and testing of suitable structural anchor points
- Hauling System Design: 3:1 or 5:1 mechanical advantage systems for controlled lifting/lowering
- Descent Control: Friction devices managing controlled descent of removed sections
- Load Positioning: Techniques for holding new sections during bracket installation
- Ground Coordination: Communication systems between height team and ground personnel
- Exclusion Zones: Protection of public areas during material movement operations
- Emergency Procedures: Systems for rapid load lowering if required
Working Adjacent to Transport Infrastructure
Projects near major transport hubs like Paddington Station require additional safety considerations and coordination. Exclusion zones must account for high pedestrian traffic, coordination with station authorities ensures operational continuity, and timing of works may need to avoid peak passenger periods. Our experience working throughout London's transport infrastructure areas ensures we understand these additional requirements and can deliver projects safely while minimising impact on public transport operations.
For this Paddington project, close liaison with station management ensured robust exclusion zones were established and maintained throughout material handling operations. This coordination protected the travelling public while allowing the building repairs to proceed efficiently without disrupting station functionality.
Period Building Drainage Systems
Many Victorian and Edwardian buildings throughout London retain original cast iron drainage systems. While these systems were built to last, they eventually reach the end of their serviceable life through corrosion, cracking, and bracket failure. When replacement becomes necessary, maintaining the period character of the building often requires like-for-like cast iron replacement rather than modern plastic alternatives.
Rope access techniques are ideally suited to period building drainage work - they avoid the loading that scaffolding would place on historic brickwork, they enable precise bracket positioning that preserves original fixing points, and they allow targeted replacement of deteriorated sections while retaining sound historic fabric where possible.
Related Services
In addition to downpipe replacement, Steel Peaks provides comprehensive building fabric repair services including gutter repairs and replacement, rainwater goods maintenance, drainage system inspections, bracket and fixing renewals, and planned maintenance programmes for period building drainage systems. Our team specialises in working on occupied buildings in high-density urban locations where access challenges and public safety considerations demand specialist solutions.
